Metcal SSC-654A Conical Sharp Bent Solder Tip

SKU: 0017-01-001413

Metcal SSC-654A is a 30° conical sharp bent tip soldering cartridge that can be used with the MFR-H6-SSC hand piece, SP200, MFR-1160, and MFR-1161 Soldering Systems. It delivers power to solder joints without increasing the temperature. Metcal recommends the 600-series for applications that are low load or low temperature.

Features & Benefits:

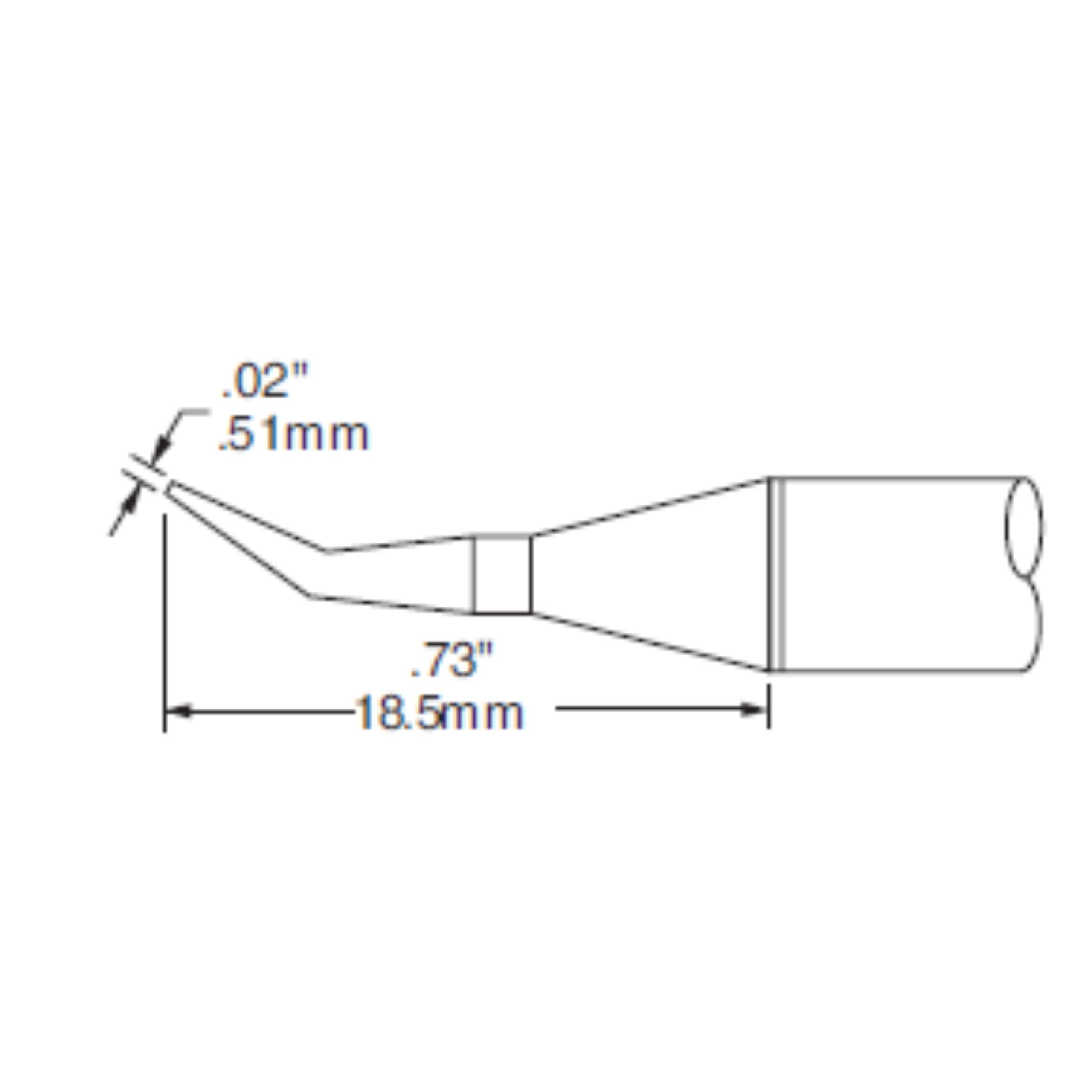

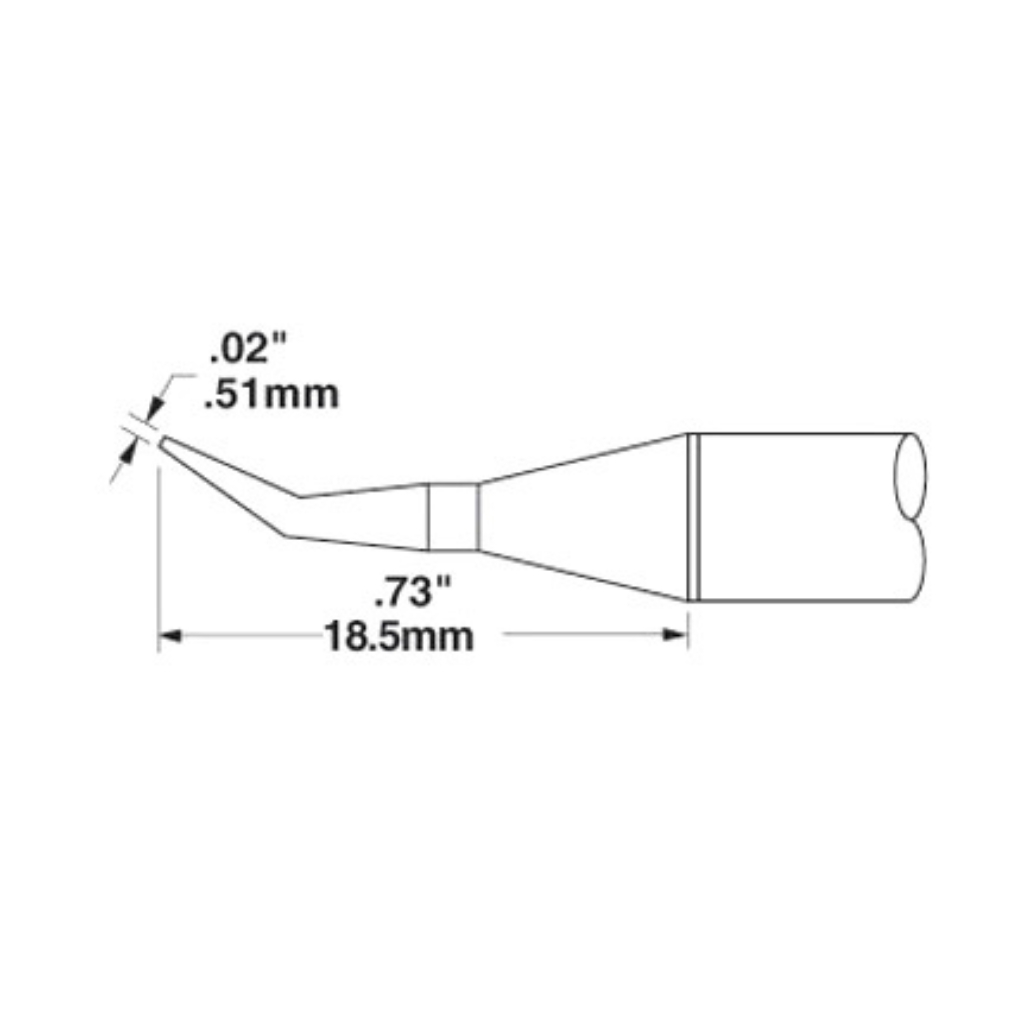

  • 0.51mm, 30° bend
  • Conical sharp bent tip
  • The 600-series have a temperature range up to 330°C
  • Can be used with leaded and lead-free solder
  • Metcal "SmartHeat Technology" automatically adjusts power levels during each soldering operation

SmartHeat Process Control:

    The technology built into every Metcal SmartHeat® system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provide the best assurance for a well-controlled soldering and rework process.

Size: 0.51mm

Additional information

Manufacturer part no.

SSC-654A

Size

0.51mm

Sold in quantity of

1

Normally ships within

5 Weeks
