Additional information
| Manufacturer part no. | SSC-772A |
|---|---|
| Size | 1.78mm |
| Sold in quantity of | 1 |
| Normally ships within | 14 Weeks |
Metcal SSC-772A Chisel Solder Tip
Metcal SSC-772A is a chisel tip soldering cartridge that is used with the MFR-H6-SSC hand piece SP200, MFR-1160, and MFR-1161 soldering systems. It delivers power to solder joints without increasing the temperature. Metcal recommends the 700-series for the majority of applications.
Features & Benefits:

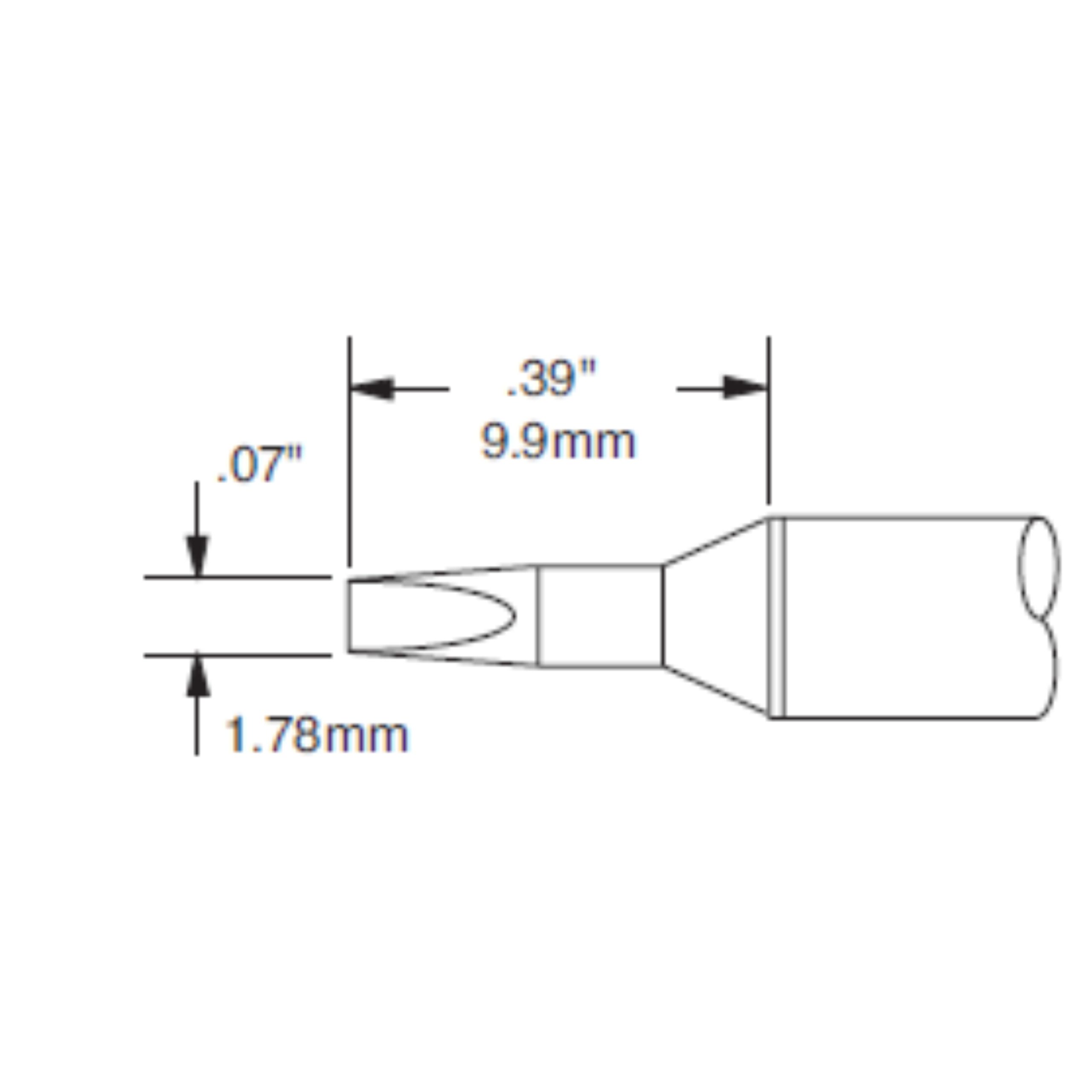

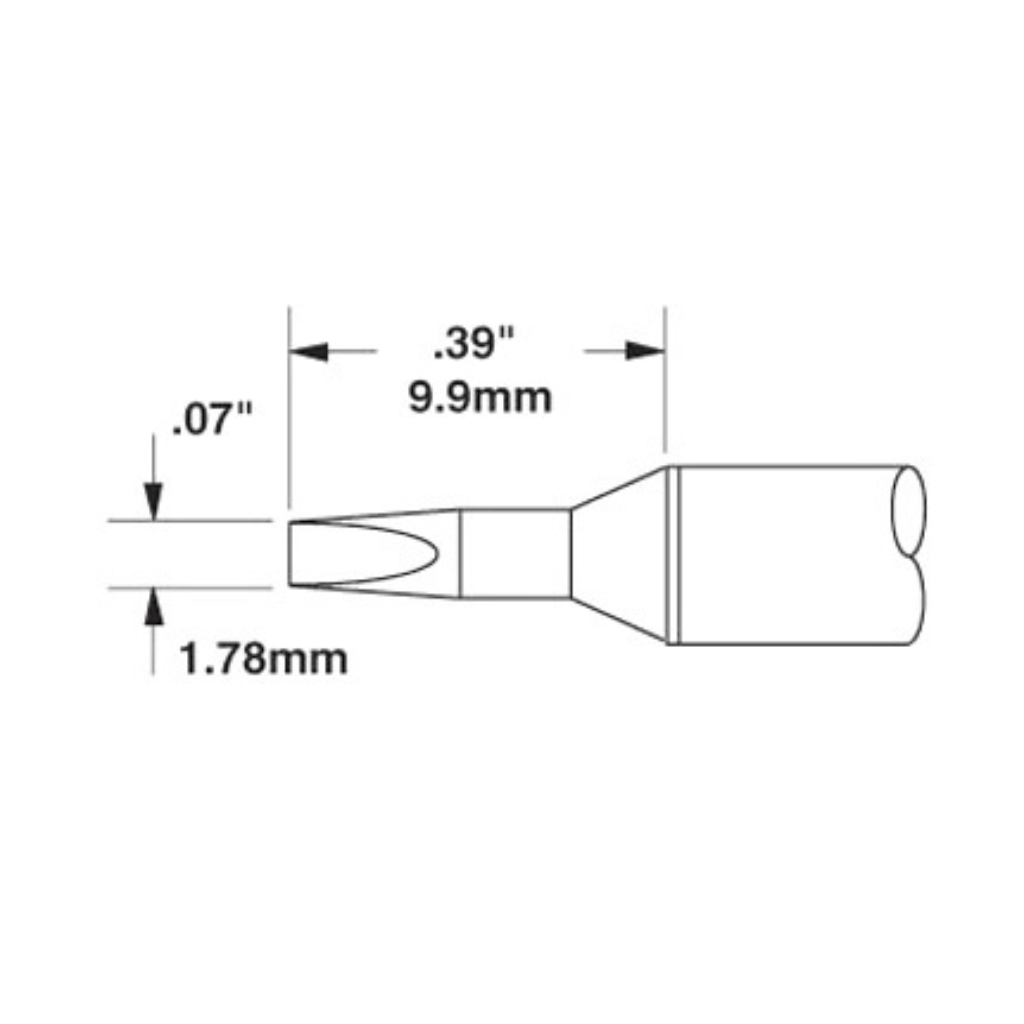

- 1.78mm x 9.9mm
- Chisel tip
- The SCC 700-series have a temperature range up to 390°C
- Can be used with leaded and lead-free solder
- Metcal "SmartHeat Technology" automatically adjusts power levels during each soldering operation
SmartHeat Process Control:
The technology built into every Metcal SmartHeat® system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provide the best assurance for a well-controlled soldering and rework process.
