Additional information
| Manufacturer part no. | STTC-813 |
|---|---|
| Sold in quantity of | 1 |
| Normally ships within | 19 weeks |
Metcal STTC-813 Chisel Blunt Solder Tip
Metcal STTC-813 is a chisel blunt tip soldering cartridge used with the Metcal MX-500, MX-5200 and MX-5000-series soldering systems. Metcal recommends the 800-series for high temperature and thermally demanding applications.
Features & Benefits:

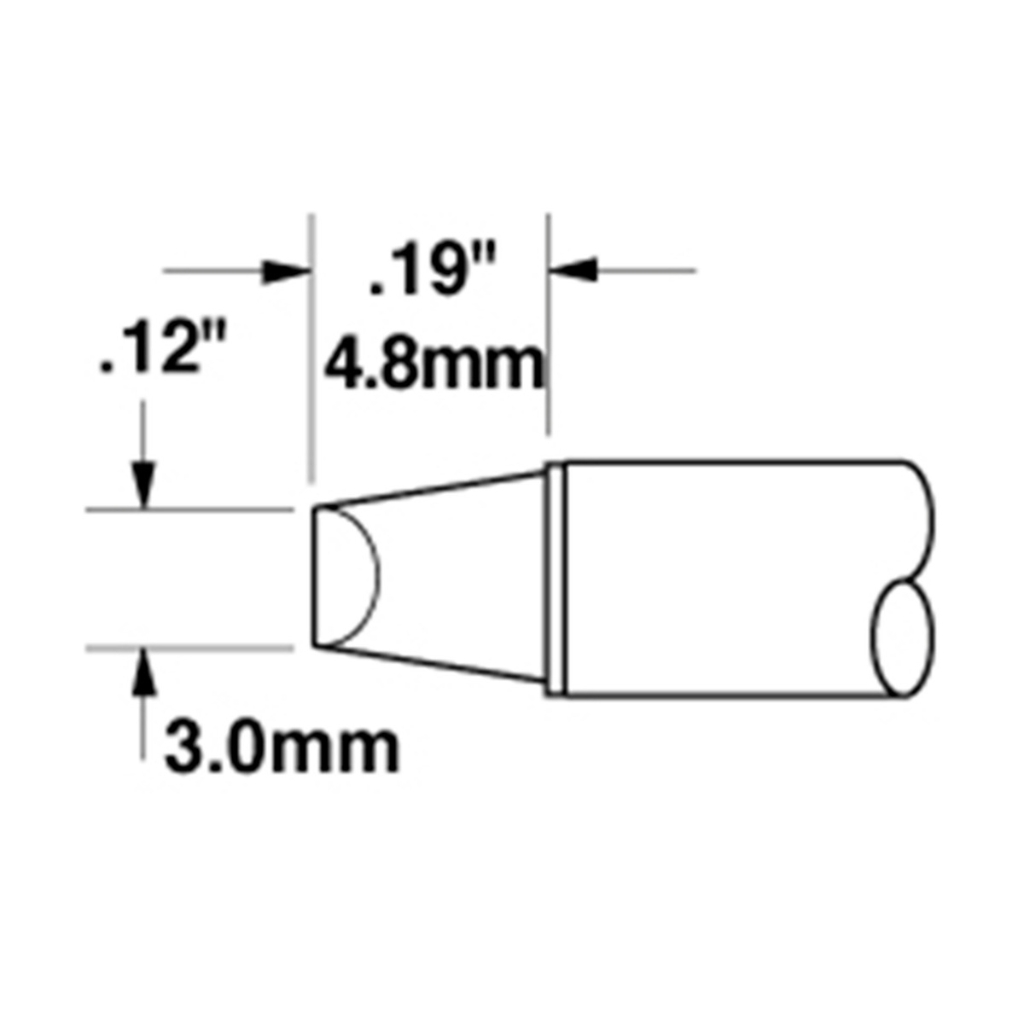

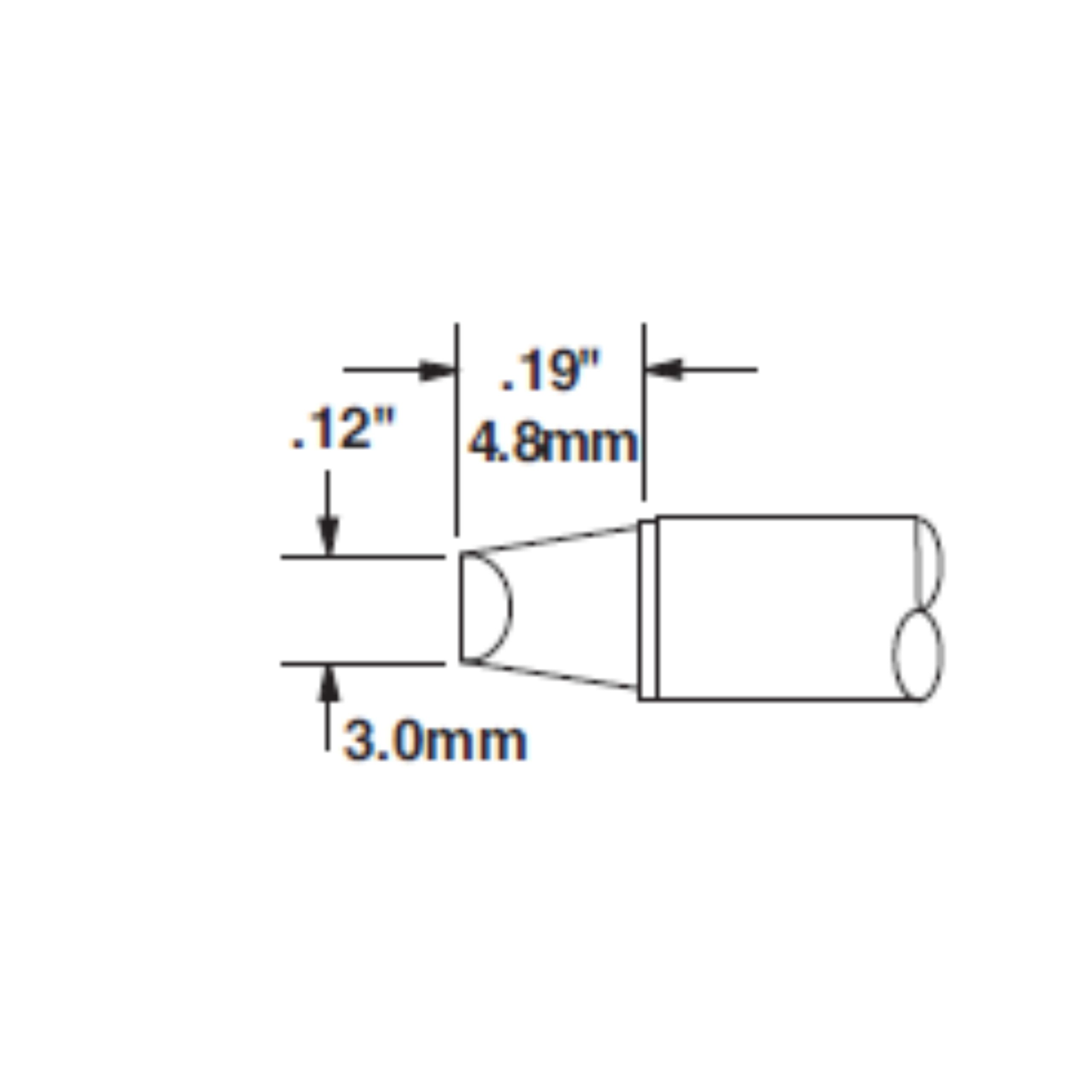

- 3mm x 4.8mm
- Chisel blunt tip
- The 800-series have a temperature range up to 450°C
- Can be used with leaded and lead-free solder
- Metcal "SmartHeat Technology" automatically adjusts power levels during each soldering operation
SmartHeat Process Control:
The technology built into every Metcal SmartHeat® system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provide the best assurance for a well-controlled soldering and rework process.
