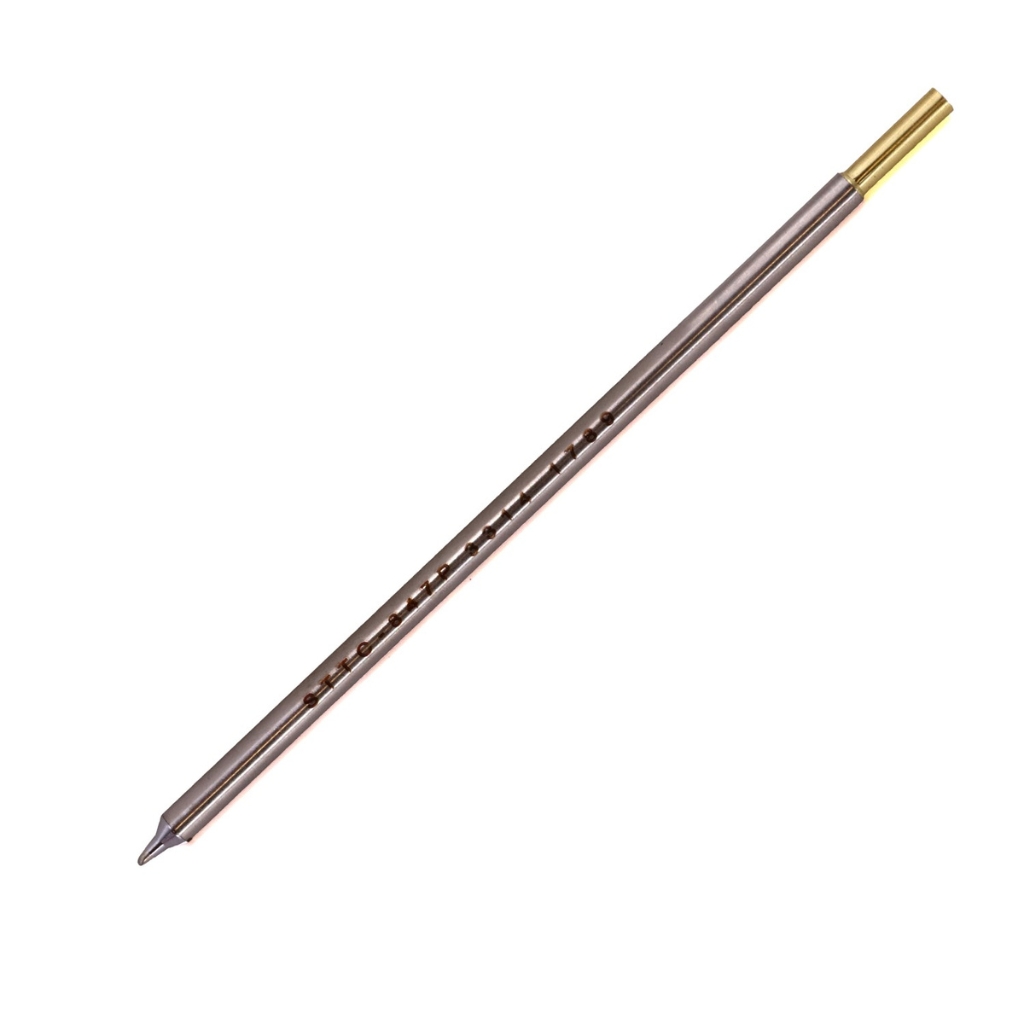

Metcal STTC-847P Bevel Power Soldering Tip

SKU: 0017-01-001685

Metcal STTC-847P is a 60° bevel power tip soldering cartridge that is used with the MX-500, MX-5000 and MX-5200 systems. It offers a variety of tasks for through hole and SMD rework. Metcal recommends the 800-series for high temperature and thermally demanding applications.

Features & Benefits:

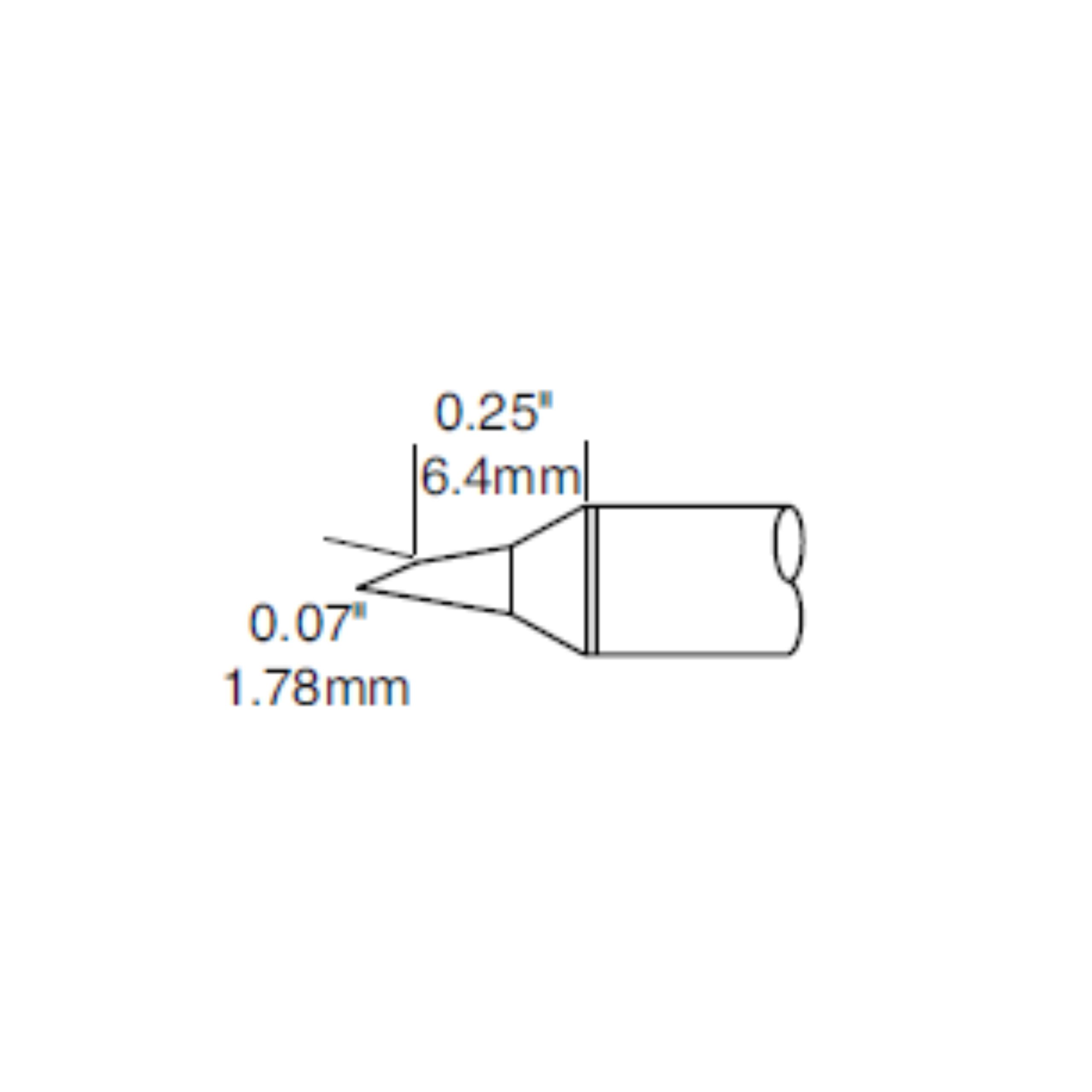

  • 1.78mm x 6.4mm
  • 60° bevel power tip
  • The 800-series have a temperature range up to 450°C
  • Can be used with leaded and lead-free solder
  • Metcal "SmartHeat Technology" automatically adjusts power levels during each soldering operation

SmartHeat Process Control:

    The technology built into every Metcal SmartHeat® system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provide the best assurance for a well-controlled soldering and rework process.

Normally ships within: 6 Weeks

Additional information

Manufacturer part no.

STTC-847P

Sold in quantity of

1

Normally ships within

6 Weeks

Metcal CV MX Cartridges Catalogue

Download
