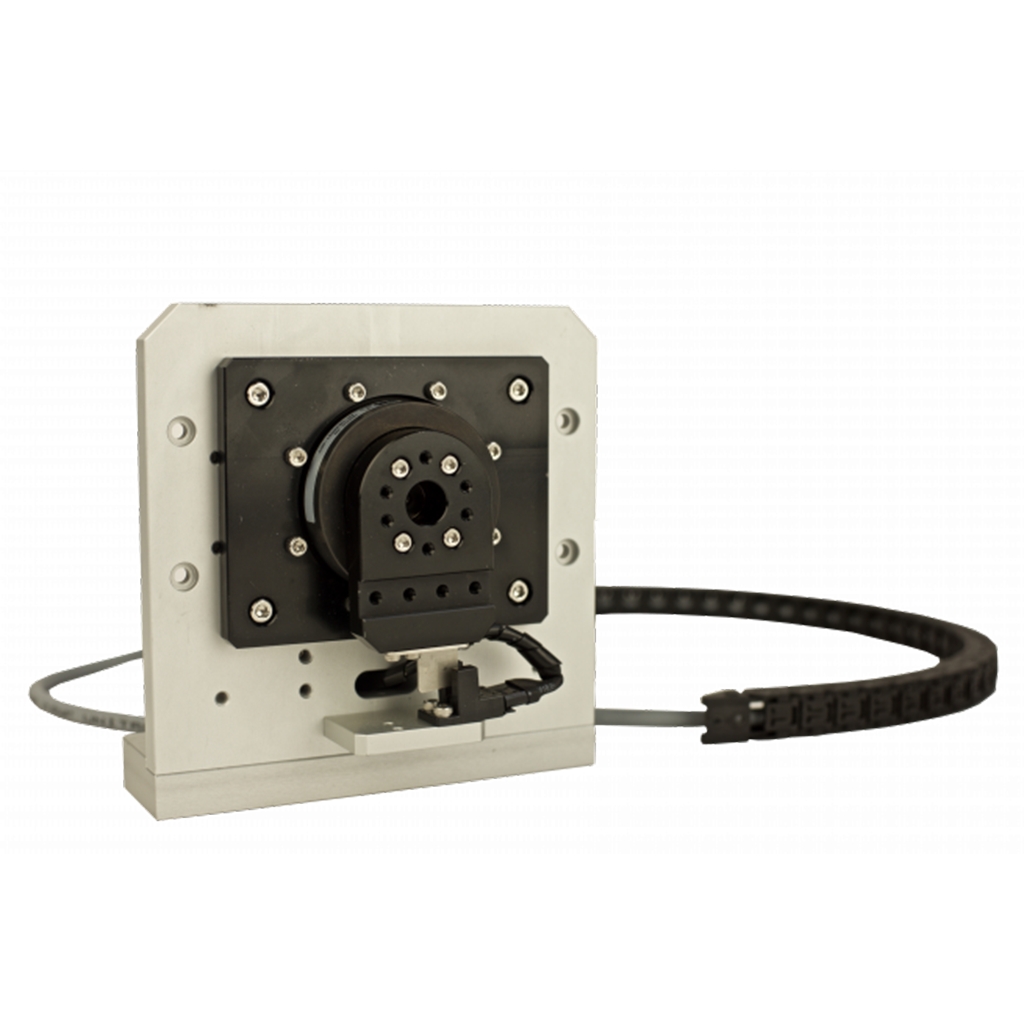

Fisnar F4000N Advance Aux Rotation Axis

SKU: 0401-08-000575

The Fisnar F4000N advance auxiliary rotation module allows an additional axis to be quickly and easily mounted onto a Fisnar F4000 ADVANCE 3-Axis robot. This device can be mounted in two different ways.

Horizontal mounting requires a 4-axis rotation, but it is not possible due to the size or weight of the dispense equipment that is normally attached to the robot Z-Axis that would typically rotate on a conventional 4-Axis robot. This configuration set-up results in the workpiece rotating instead, achieving the same end dispense result. Horizontal mounting also allows the CCD vision system to be used in application processes requiring a 4-axis motion.

Vertical mounting is used in applications that require dispensing onto multiple planes on a single workpiece.

Dispensing onto cylindrical components can be made easy with the device mounted in either a horizontal or vertical position depending on the specific application process.

Features & Benefits:

  • Allows for additional axis to be quickly and easily mounted
  • Device can be mounted horizontally or vertically
  • Improves efficiency with material or tip changes
  • Expands the capabilities of dispensing robot systems

Size: N/a

Additional information

Manufacturer part no.

F4000AKIT-AUX

Sold in quantity of

1

Normally ships within

4 Weeks
